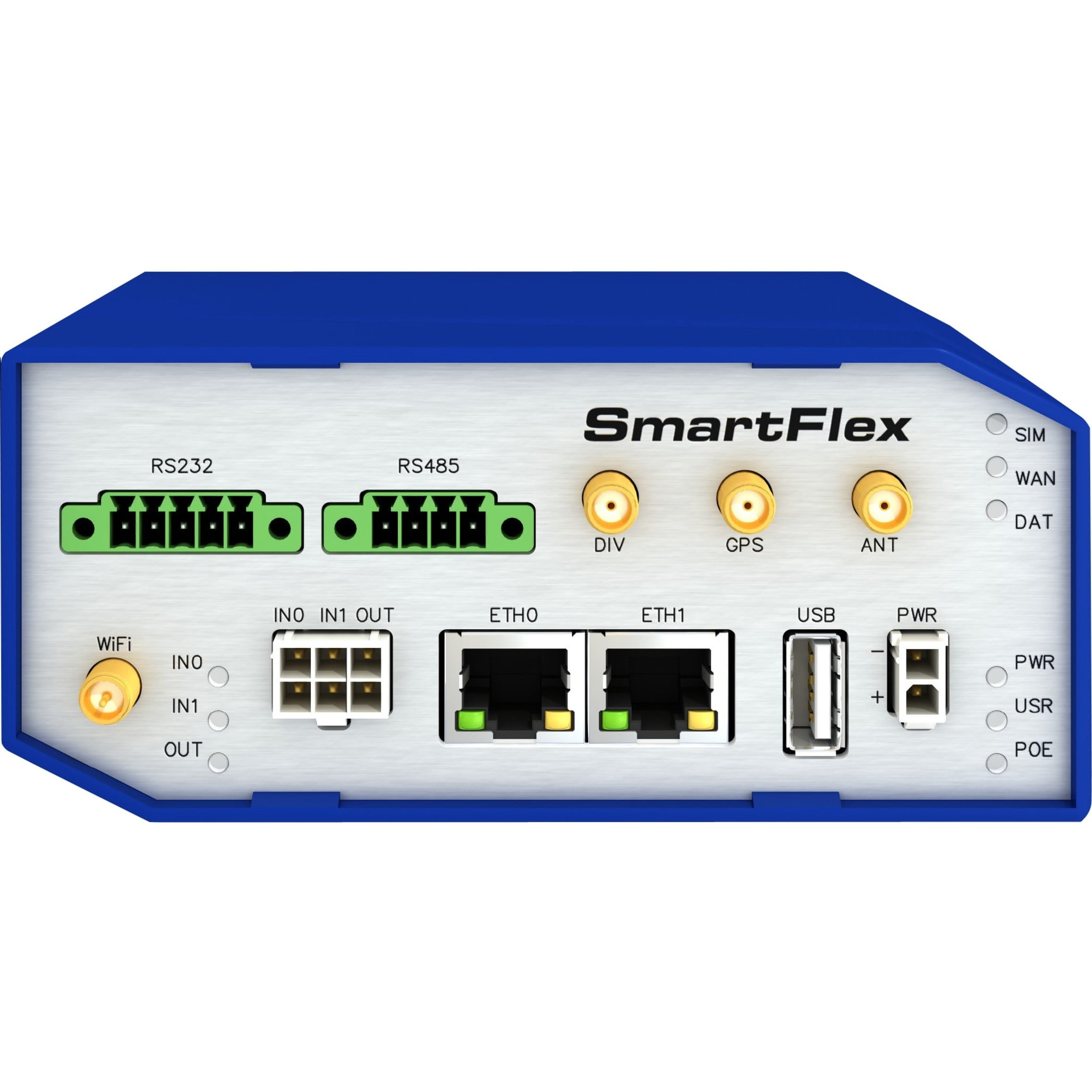

B+B SmartWorx SmartFlex SR305 Cellular Modem/Wireless Router

<b>Smart Flex��� ... more power, more features, more ideas</b> <p>The SmartFlex��� cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can be used to provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical, and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbit/s and download speeds of up to 100 Mbps, the SmartFlex��� provides ample bandwidth, even for applications that require video.</p> <p>The SmartFlex��� is designed and manufactured for use in tough environmental conditions. Specifications include wide operating temperature ranges from -40 to +75 ��C (-20 to +60 ��C LTE450 module). It accepts input voltage ranges from 10 V DC to 60 V DC and is equipped with sleep mode for reducing electrical consumption.</p> <p>The SmartFlex��� places intelligence out at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage the SmartFlexTM from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and they can create multiple configurations for the same router. Users may switch from one configuration to another at any time.<br><br>The flexible SmartFlex��� can be configured to suit any application. The standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses. The standard configuration also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O) , 1 binary output (I/O) and onboard GPS. An optional built-in WiFi module is also available, with industrial grade operating temperature ranges from -40 to +75 ��C (-20 to +60 ��C LTE450 module). Further optional boards available: 3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or ETH - RS232 - RS485 (isolation strenght up to 2.5kV) or RS232 - RS485 (isolation strenght up to 2.5kV) or RS232.<br><br>The SmartFlex��� supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet.<br><br><b>INTELLIGENT MANAGEMENT SOFTWARE</b></p> <p>SmartFlex��� is easy to install using SmartWorx HUB���, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster���, makes it easy to configure multiple routers via the same VPN tunnel.</p>

• Powerful CPU and enhanced memory to support high demand customer applications
• Extended operational temperature range from -40 ��C to +75 ��C
• 10-60 VDC operated with transient and reverse polarity voltage protection
• Flexible Port options, such as 3-port Switch, Ethernet and RS232/422/485 serial ports with isolation
• Version without cellular module (XR)
• GPS and GLONASS support
• MicroSD card holder
• Low power consumption mode for solar and battery power applications
• Optional industrial grade WiFi
• PoE PD, PoE PSE, In/Out, USB Host
• Advanced security features
